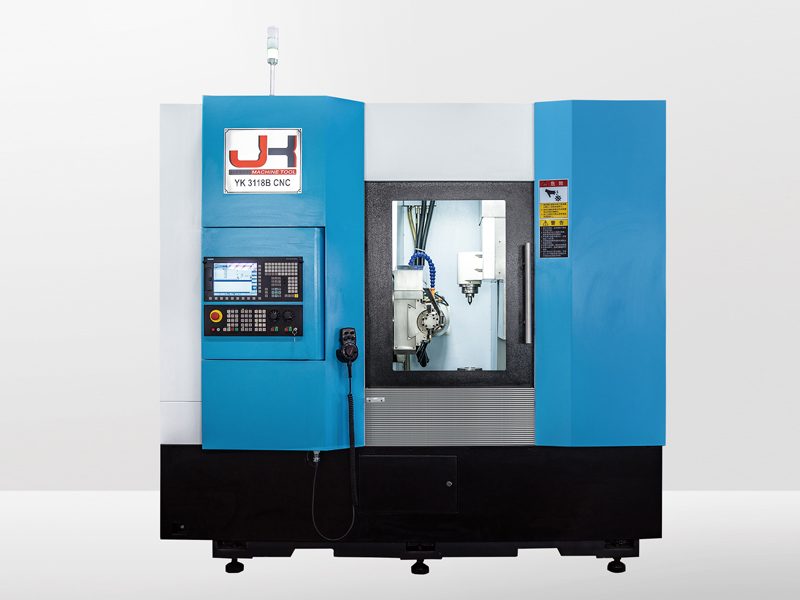

YK3118B CNC型

YK3118CNC型

高效數控滾齒機

HIGH EFFICIENCY CNC HOBBING MACHINE

YK3118CNC高效數控滾齒機采用展成法原理，通過數控系統電子齒輪箱(EGB)功能，

實現分齒運動和差動補償運動，能完成圓柱齒輪、斜齒輪、鼓形齒輪、蝸輪及花鍵

等齒的加工。本機床為高效數控滾齒機，非常適合于汽車、摩托車行業，減速機、

紡織機械、起重機械、機床等企業的齒輪大批量加工。

YK3118CNC Adopted with principle of generating method and CNC EGB function,to achieve gear rack movement and differential compensation,Y3120 CNC gear hobbing machine is a kind of high efficiency hobbing machine tool available to precisely produce Cylindrical gear,helical gear,drum gear,worm gear and spline etc.This model is widely applied for large production of small module gears in the motorcycle/auto,reducer motor,textile machinery,lift machinery and ,lathe machine tool etc.

主要特點MAIN FEATURES:

1、本機床為七軸四聯動，七個數控軸為:

A一滾刀架回轉運動

B一滾刀主軸回轉運動

C一工作臺主軸箱回轉運動

X一徑向進給運動

Y一切向進給運動

Z一軸向進給運動

U-尾座頂尖運動

四個聯動軸為:B軸、C軸、X軸、Z軸;

2、采用電子齒輪箱(EGB)實現分齒運動和差動補償運動;

3、快退保護功能:在斷電或發生故障按下急停時。同步快退讓刀，避免損壞刀具;

4、具有故障診斷及報警顯示功能;

5、具有二次切削對刀功能:在齒輪粗滾熱處理后，精加工硬度HRC59°±2°的硬齒面加工;

6、工件主軸采用力矩電機直聯驅動。并配置高精度的角度編碼器，提高機床的運動精度，提高了零件的加工精度。

7、具有干、濕切功能:選用合適的滾刀可進行高速干式切削;

8、加工精度可達G B / T 10095.1-2008的6級，齒面粗糙度為Ra1.6μm。

1 ,This machine has seven axes and four linkages, and the seven CNC axes are:

A axis:Hob shaft swivel

  B axis:Hob spindle swivel

  C axis:Table swivel

  X axis:Radial feed

  Y axis:Tangential feed

  Z axis:Axial feed

  U axis: Tail stock top movement

The 4 linkage axes are:B,C,X, Z

2,Electronic gear box to achieve gear rack and differential compensation.

3,Backward protection function:when interruption of power or another kind of emergency, synchronously retreat knife for protection.

4,Software for fault diagnostics and alarm show.

5,Precise cutter setting in the second cutting after hear treat in initial hobbing,up to

the hardness of HRC59°±2°.

6,Both the and the workpiece are directly driven by an electric spindle plus a torque motor. It is equipped with a high-precision angle encoder to improve the motion accuracy of the machine tool and the machining accuracy of the parts.

7,With dry and wet cutting functions: select suitable hobs for high-speed dry cutting

8,The machining accuracy can reach Grade 6 of G B/T 10095.1-2008, and the tooth surface roughness is Ra1.6μm.

標準配置standard equipment

SINUMERIK數控控制系統 SINUMERIK 828D CNC system

工件夾緊裝置workpiece clamping device

全密封護罩Close Cover

10.4"彩色顯示器 10.4" color screen

Φ16刀桿組件φ16 hob cutter set

集中定量潤滑裝置 concentrate quantitative lubrication device

帶空調的電氣控制箱electric control box with air conditioner

液壓系統hydraulic system

磁力排屑機、鐵屑箱magnetic chip conveyor

機床狀態顯示燈situation index light

冷卻系統cooling system

機床減震墊鐵absorber pad

機床照明燈illumination light

循環潤滑系統recycling lubrication system

安裝調整專用工具install and adjust tools

活絡頂尖rotatable thimble

滾珠絲杠導軌(進口)Ball screw guider(entry)

軸承(進口)Bearing(entry)

使用說明書operation&service manual

可選配置optional equipment

工件夾具workpiece clamping device

精密對刀精加工裝置skiving precise cutter setting

油霧處理裝置(濕切)oil mist collector(wet)

φ13刀桿組件φ13 hob cutter set

φ22刀桿組件φ22 hob cutter set

Φ27刀桿組件φ27 hob cutter set

機動去毛刺裝置mechanical deburring equippment

主要技術參數main technical specification

項目Item         單位Unit        YK3118CNC

最大工件直徑Max workpiece diameter       200mm

最大工件模數Max module       3

最大軸向行程Max axial travel        330  mm

加工齒數范圍No. of teeth       3~999teeh

滾刀最大直徑x長度Max diameter and length of Hob        φ80 x 120  mm

滾刀軸直徑Max diameter of hob        φ16 mm

滾刀竄刀長度Max length of hob shift        120 mm

滾刀主軸(B軸)最高轉速Hob spindle rotation speed B-axis        3000 rpm

工件主軸（C軸）最高轉速Table rotation speed C-axis       700rpm

X, Z軸快速移動速度X/Z rapid traverse speed        5000mm/min

尾座頂尖（U軸）行程 The stroke of the tailstocktop (U axis).  300mm

滾刀架最大回轉角度Hob head swivel     ±45°degree

電機總功率Total Power of motor   30 KVA

機床外形尺寸(長x寬x高)Overall dimensions 2550 x 2800 x 2450mm

機床凈重Net weight    9000  Kg
